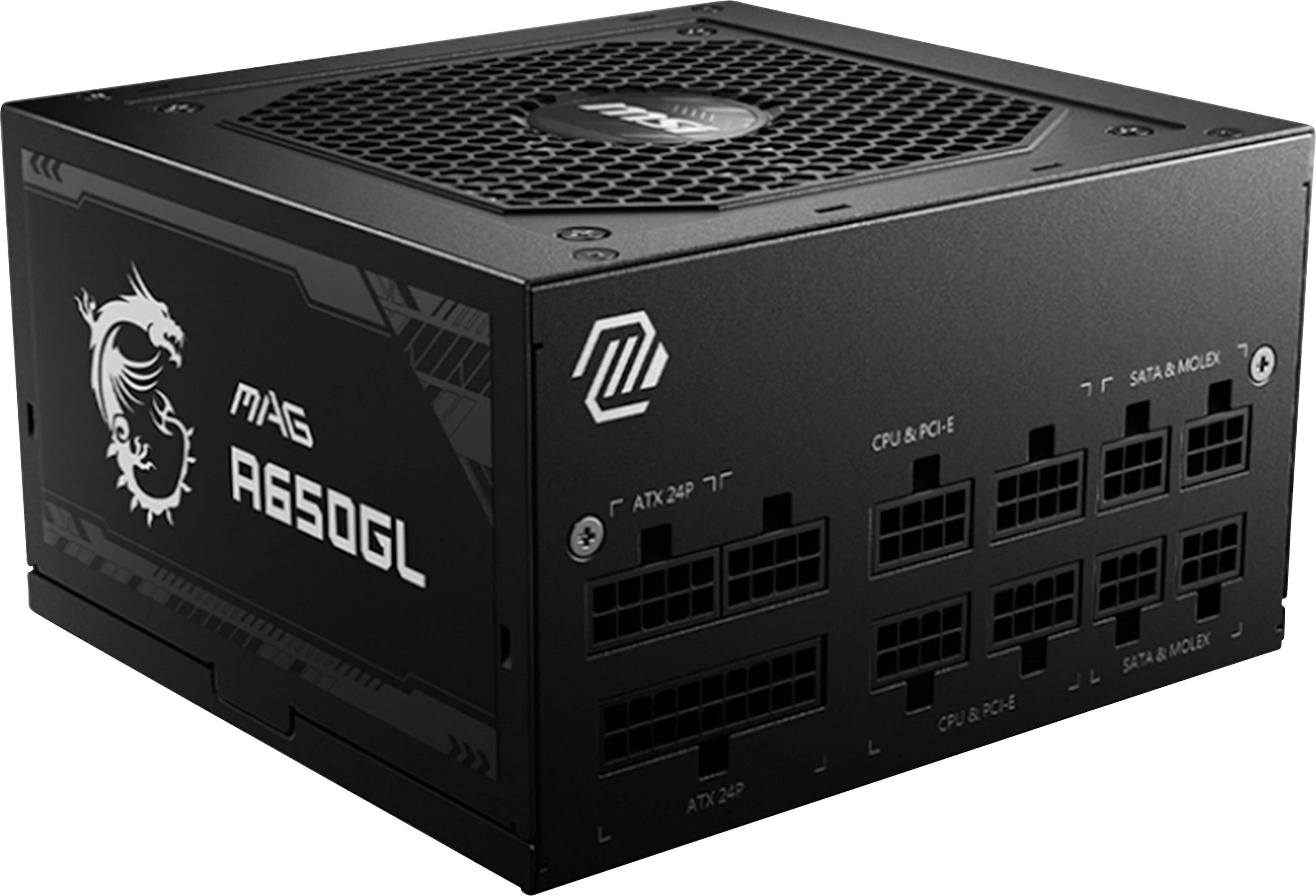

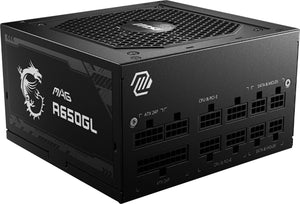

Power supply MSI MAG A650GL PCIE5 650WATT (306-7ZP8C1-CE0)

Power
Efficiency: 90%
Energy protection features: overcurrent, overloading, overvoltage, short circuit
Power factor correction filter (PFC): Active
Combined power (+3.3V): 100 W
Combined power (+12V): 648 W
Combined power (+5V): 100 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 12.5 W
Max. output current (+3.3V): 20 A
Max. output current (+12V): 54 A
Max. output current (+5V): 20 A
Max. output current (-12V): 0.3 A
Max. output current (+5Vsb): 20 A
AC input voltage: 100 - 240 V
Total power: 650 W
Maximum input current (at 110V): 10 A
Maximum input current (at 220V): 5 A

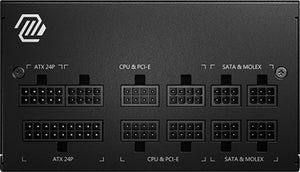

Connections and interfaces
ATX power connector (24-pin): No
Floppy drive connector: No
Motherboard connector: 20+4 pin ATX
Number of SATA power connectors: 6
Number of Molex 4-pin connectors: 4
EPS power connector (8-pin): No
ATX power connector (20+4-pin): Yes
CPU connector (4+4 pin): Yes
Number of PCI Express 6+2 pin power connectors: 4
Cable type: Modular
EPS power connection (4+4-pin): Yes

Performance
Purpose: PC
80 Plus: 80 PLUS Bronze
Power supply (PSU) form factor: ATX

Design
Product color: Black
Lighting: No
Number of fans: 1 fan
Power switch: Yes
Cooling: Active
Fan diameter: 12 cm

Weight & dimensions
Height: 86 mm
Width: 150 mm
Depth: 140 mm

Logistics data

---

MSI MAG A650GL. Total power: 650 W, AC input voltage: 100 - 240 V, Maximum input current (@110V): 10 A. Motherboard connection: 20+4 Pin ATX, Cabling type: Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product color: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm

Energy Management
Total power	650 W
AC input voltage	100 - 240 V
Maximum input current (@110V)	10 A
Maximum input current (at 220 V)	5 A
Type of power factor correction (PFC)	Active
Combined power (+3.3V)	100 W
Combined power (+12V)	648 W
Combined power (+5V)	100 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	12.5 W
Maximum output current (+3.3V)	20 A
Maximum output current (+12V)	54 A
Maximum output current (+5V)	20 A
Maximum output current (-12V)	0.3 A
Maximum output current (+5Vsb)	20 A
Efficiency	90%
Power supply protection features	overcurrent, overload, overvoltage, short circuit
Connection possibilities
Motherboard connection	20+4 Pin ATX
Number of SATA connections	6
Peripheral connections (Molex) (4-pin)	4
EPS power connection (8-pin)	No
EPS power connection (4+4-pin)	Yes
PCI Express connectors (6+2 Pin)	4
CPU power connector (4+4-Pin)	Yes
ATX connector (24-PIN)	No
ATX connection (20+4-PIN)	Yes
Floppy Disk connection	No
Cabling type	Modular
Performance
80 PLUS certification	80 PLUS Bronze
Usage	PC
Power supply (PSU) form factor	ATX
Form factor
Product color	Black
Cooling type	Active
Fan diameter	12 cm
Number of fans	1 fan(s)
Lighting	No
On/Off switch	Yes
Dimensions and weight
Width	150 mm
Depth	140 mm
Height	86 mm
Logistic data
Harmonized System Code (HS)	84733020

Design

• Product color: Black
• On/Off switch: Yes
• Cooling type: Active
• Fan diameter: 12 cm
• Number of fans: 1 fan

Performance

• AC input frequency: 47 63 Hz
• AC input voltage: 100 240 V
• Combined power (+12 V): 648 W
• Max output current (+5 Vsb): 2.5 A
• Max output current (+3.3 V): 20 A
• Total power: 650 W
• Power protection features: overload, short circuit, overvoltage, overheating, overcurrent
• Efficiency: 90 %
• Combined power (+5 Vsb): 12.5 W
• Max output current (-12 V): 0.3 A
• Max output current (+5 V): 20 A
• Combined power (+5 V): 100 W
• Max input current (@110 V): 8 A
• Combined power (-12 V): 3.6 W
• Max output current (+12 V): 54 A
• Type of power factor correction (PFC): Active
• Combined power (+3.3 V): 100 W
• Max input current (@220 V): 4 A

Weight and dimensions

• Depth: 140 mm
• Width: 150 mm
• Height: 86 mm

Performance

• Power supply (PSU) form factor: ATX
• 80 PLUS: 80 PLUS Gold
• Purpose: PC
• Type of power factor correction (PFC): Active

Packaging data

• Packaging type: Box

Connections and interfaces

• ATX power connector (24-pin): No
• Peripheral power connections (Molex) (4-pin): 3
• PCI Express power connections (6+2-pin): 4
• CPU power connector (4+4-pin): Yes
• Cabling type: Modular
• EPS power connector (8-pin): No
• Length of motherboard power cable: 60 cm
• Motherboard power connector: 20+4-pin ATX
• Number of SATA power connectors: 6
• EPS power connector (4+4-pin): Yes
• ATX power connector (20+4-pin): Yes

The MSI MAG A650GL power supply fights alongside gamers in the pursuit of honor. By incorporating militarily inspired elements into these gaming products, they have been reborn as symbols of strength and durability.

• Output connector compatible with PCIe 5.0 and Intel PSDG (Power Supply Design Guide) ATX 3.0
• The MAG A650GL PCIE5 power supply can handle up to 2x total power deviation and 3x GPU power deviation
• 80 PLUS Gold for lower energy consumption and higher efficiency
• Connectors for easy setup and less cable clutter
• The included cable package provides storage for unused cables

Total power:

650 W

AC input voltage:

100 - 240 V

Maximum input current (at 110V):

10 A

Maximum input current (at 220V):

5 A

Power factor correction filter (PFC):

Active

Combined power (+3.3V):

100 W

Combined power (+12V):

648 W

Combined power (+5V):

100 W

Combined power (-12V):

3.6 W

Combined power (+5Vsb):

12.5 W

Max. output current (+3.3V):

20 A

Max. output current (+12V):

54 A

Max output current (+5V):

20 A

Max. output current (-12V):

0.3 A

Max. output current (+5Vsb):

20 A

Efficiency:

90%

Energy protection features:

overcurrent, overloading, overvoltage, short circuit

Motherboard connector:

20+4 pin ATX

Number of Molex 4-pin connectors:

4

Number of SATA power connectors:

6

EPS power connector (4+4-pin):

Yes

Number of PCI Express 6+2 pin power connectors:

4

CPU connector (4+4 pin):

Yes

ATX power connector (20+4 pin):

Yes

Cable type:

Fully modular

Purpose:

PC

Power supply (PSU) form factor:

ATX

80 Plus:

80 PLUS Bronze

Product color:

Black

Cooling:

Active

Fan diameter:

12 cm

Number of fans:

1 fan

On/Off switch:

Yes

Width:

150 mm

Depth:

140 mm

Height:

86 mm

Tariff number (HS):

84733020

• Type:
  • Modular
  • Power supply
• Color: Black
• Features:
  • Overheating protection
  • On/Off switch
  • Short-circuit protection
  • Overvoltage protection
  • Overload protection
• Form factor: ATX
• Fan: 12 cm
• Approx. dimensions: 15 x 8.6 x 14 cm
• Connections:
  • SATA x 6
  • 20+4 pin ATX
  • 4+4 pin
  • 4-pin x 3
  • 6+2 pin x 4
• Frequency: 47-63 Hz
• Power: 650 W
• Voltage: 100-240V
• Recommended usage: Desktop PC
• Detachable product: Yes

Product specifications:

• Power: 650 W
• Cable type: Fully modular
• : 80 PLUS Bronze
• Form factor: ATX

Manufacturer No.: 306-7ZP8C11-CE0

80 PLUS GOLD - The efficiency of the power supply has a direct impact on system performance and thus also on energy consumption. The 80 PLUS Gold ensures lower energy consumption and higher efficiency. COMPACT SIZE Compared to market-available power supplies, this power supply is smaller, saving space and making cable management in the computer case easier. ONLY WHAT YOU NEED Only the connections necessary for setup are used, simplifying cable management and the overall system build. Additionally, the included cable bag provides storage for any unused cables. PERFECT CABLE MANAGEMENT Cable management is often the most tedious part of building a PC. Flat cables make cable management easier and save headaches! The entire system can be better organized with flat cables and there is more room for unobstructed airflow. DYNAMIC BALL BEARINGS The power supply fan is equipped with a dynamic ball bearing, perfectly balancing cooling performance and noise levels. DC/DC & FULL BRIDGE The combination of DC/DC and full-bridge converters ensures a higher conversion efficiency, stable output voltage, and quick voltage adjustment for various application scenarios, leading to a stable power supply design. MAXIMUM PERFORMANCE The single-rail power supply can reliably provide power. For high-performance graphics cards and CPUs, the 5 CPU and PCI-E slots of this power supply are more than sufficient. PROTECTION MECHANISMS To ensure that the entire system can operate safely and stably at all times, the power supply features a range of protection mechanisms that provide you with the highest level of safety. Technical specifications: - Total power: 650 W - AC

MSI MAG A650GL. Total power: 650 W, AC input voltage: 100 - 240 V, Maximum input current (at 110V): 10 A. Motherboard connector: 20+4 pin ATX, Cable type: Fully modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 Plus: 80 PLUS Bronze. Product color: Black, Cooling: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm

MSI MAG A650GL - Power supply (internal) - ATX12V / EPS12V - 80 PLUS Gold - AC 100-240 V - 650 Watt - active PFC

MSI MAG A650GL 650W 80+ Gold power supply. Maximum power: 650W, certification: 80+ Gold, standard: ATX, Modular, Manufacturer code: 306-7ZP8C11-CE0...
