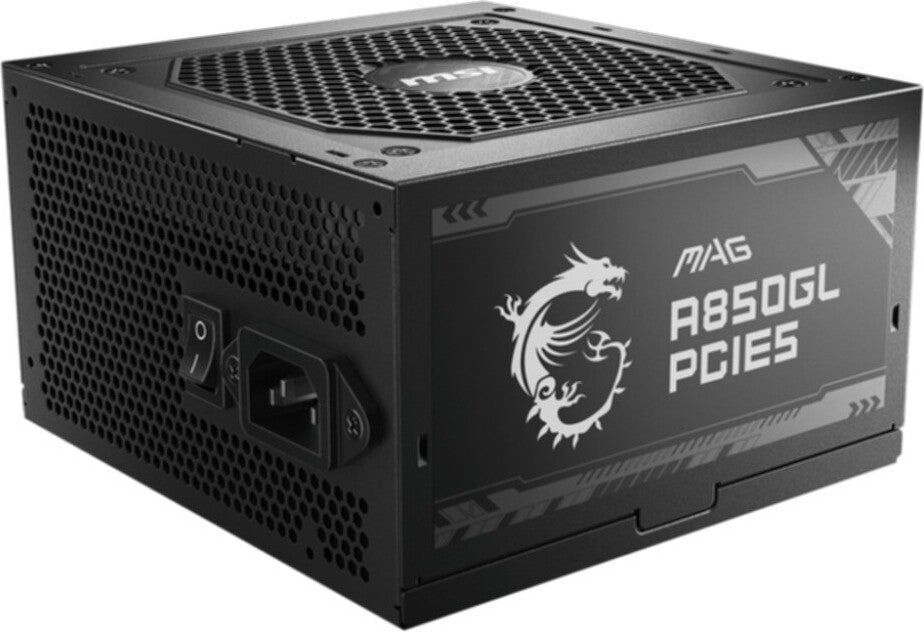

MSI MAG A850GL PCIE5 850 W 20 4 PIN ATX ATX black (306-7ZP8A1-CE0)

Precio de venta €208,00
40
People are viewing this right now
Order now to get it between and
Agregar a la lista de deseos Agregar a comparación

Final price and shipping costs includes local VAT as per delivery country in the European Union for end consumers. (B2C)

VAT free invoice available for business customer with a valid EU VAT number on request before purchase. (B2B)

Return for free within 14 days of receipt in it's original condition (unopened and not used) for end consumers. Duties & taxes are non-refundable. (for Non-EU deliveries)

Disclaimer: Despite our best efforts we cannot guarantee that the published specifications and images do not contain errors or mistakes that cannot however constitute the basis for claims.

All trademarks, logos and brand names are the property of their respective owners. All company, product and service names used in this website are for identification purposes only. Use of these names,trademarks and brands does not imply endorsement.
MSI MAG A850GL PCIE5 850 W 20 4 PIN ATX ATX black (306-7ZP8A1-CE0)

MSI MAG A850GL PCIE5 850 W 20 4 PIN ATX ATX black (306-7ZP8A1-CE0)

€208,00
Power
Efficiency: 90%
Energy protection features: overcurrent, overload, overvoltage, overheating, short circuit
Power factor correction filter (PFC): Active
Combined power (+3.3V): 110 W
Combined power (+12V): 846 W
Combined power (+5V): 110 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 12.5 W
Max. output current (+3.3V): 20 A
Max. output current (+12V): 70.5 A
Max output current (+5V): 20 A
Max. output current (-12V): 0.3 A
Max. output current (+5Vsb): 2.5 A
AC input frequency: 47 - 63 Hz
AC input voltage: 100 - 240 V
Total power: 850 W
Max input current (at 110V): 8 A
Max input current (at 220V): 4 A

Connections and Interfaces
ATX power connector (24-pin): No
Motherboard connector: 20+4 pin ATX
Number of SATA power connectors: 5
Number of Molex connections 4pin: 2
EPS power connector (8-pin): No
ATX power connector (20+4 pin): No
CPU connector (4+4 pin): Yes
Number of PCI Express power connectors 6+2pin: 2
Cable type: Modular
Power cable length motherboard: 60 cm
EPS power connector (4+4 pin): Yes

Performance
Purpose: PC
80 Plus: 80 PLUS Gold
Power supply unit (PSU) form factor: ATX

Design
Product color: Black
Number of fans: 1 fan
On/Off switch: Yes
Cooling: Active
Fan diameter: 12 cm

Weight & Dimensions
Height: 86 mm
Width: 150 mm
Depth: 140 mm

Packaging
Packaging type: Box

Logistic Data

Specifications:



Power control:

- Total power: 850W

- AC input voltage: 100 - 240V

- AC input frequency: 47 - 63Hz

- Max input current (110V): 8A

- Max input current (220V): 4A

- Type of power factor correction (PFC): Active

- Combined power (3.3V): 110 W

- Combined power (+12V): 846 W

- Combined power (+5V): 110 W

- Combined power (-12V): 3.6 W

- Combined power (+5VSB): 12.5 W

- Max. output current (+3.3V): 20 A

- Max. output current (+12V): 70.5 A

- Max. output current (+5V): 20 A

- Max. output current (-12V): 0.3 A

- Max. output current (+5Vsb): 2.5 A

- Efficiency: 90 %

- Power protection functions: overcurrent, overvoltage, overheating, short circuit



Connections and Interfaces:

- Motherboard power supply: 20+4 Pin ATX

- Length of motherboard power cable: 60 cm

- Number of SATA power connectors: 5

- Peripheral power connector (4 Pin) (Molex): 2

- EPS power connector (4+4 Pins): Yes

- PCI Express power connector (6 + 2 Pin): 2

- CPU power connector (4 +4 Pins): Yes

- Wiring type: Modular



Performance:

- 80 PLUS: 80 PLUS Gold

- Use with: PC

- Form factor for power supply units (PSU): ATX



Design:

- Type of cooling: Active

- Fan diameter: 12 cm

- Number of fans: 1 fan(s)

- Integrated on/off switch: Yes



Weight and Dimensions:

- Width: 150 mm

- Depth: 140 mm

- Height: 86 mm




MSI MAG A850GL PCIE5. Total power: 850 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard connector: 20+4 Pin ATX, motherboard power cable length: 60 cm, wiring type: Modular. Purpose: PC, power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product color: Black, cooling type: Active, fan diameter: 12 cm. Width: 150 mm, depth: 140 mm, height: 86 mm
Energy Management
Total power 850 W
AC input voltage 100 - 240 V
AC input frequency 47 - 63 Hz
Max input current (@110V) 8 A
Max input current (at 220 V) 4 A
Type of power factor correction (PFC) Active
Combined power (+3.3V) 110 W
Combined power (+12V) 846 W
Combined power (+5V) 110 W
Combined power (-12V) 3.6 W
Combined power (+5Vsb) 12.5 W
Max output current (+3.3V) 20 A
Max output current (+12V) 70.5 A
Max output current (+5V) 20 A
Max output current (-12V) 0.3 A
Max output current (+5Vsb) 2.5 A
Efficiency 90%
Power supply protection features overcurrent, overload, overheating, short circuit
Connection possibilities
Motherboard connector 20+4 Pin ATX
Length of motherboard power cable 60 cm
Number of SATA connectors 8
Peripheral connectors (Molex) (4-pin) 4
EPS power connector (8-pin) No
EPS power connector (4+4-pin) Yes
PCI Express connectors (6+2 Pin) 4
CPU power connector (4+4 Pin) Yes
ATX connector (24-PIN) No
ATX connector (20+4-PIN) No
Wiring Type Modular
Performance
80 PLUS certification 80 PLUS Gold
Use PC
Form factor of power supply (PSU) ATX
Form Factor
Product Color Black
Cooling Type Active
Fan Diameter 12 cm
Number of Fans 1 Fan(s)
Lighting No
On/Off Switch Yes
Dimensions and Weight
Width 150 mm
Depth 140 mm
Height 86 mm
Packaging Information
Type of packaging Box
Logistic Data
Harmonized System code (HS) 84733020


General
Device type
Power Supply - Active Power Factor Correction (PFC) - Internal
Specification compliance
ATX12V 3.0/ EPS12V
Power supply form factor
ATX
Power supply device
Input voltage
AC 100-240 V
Required frequency
47 - 63 Hz

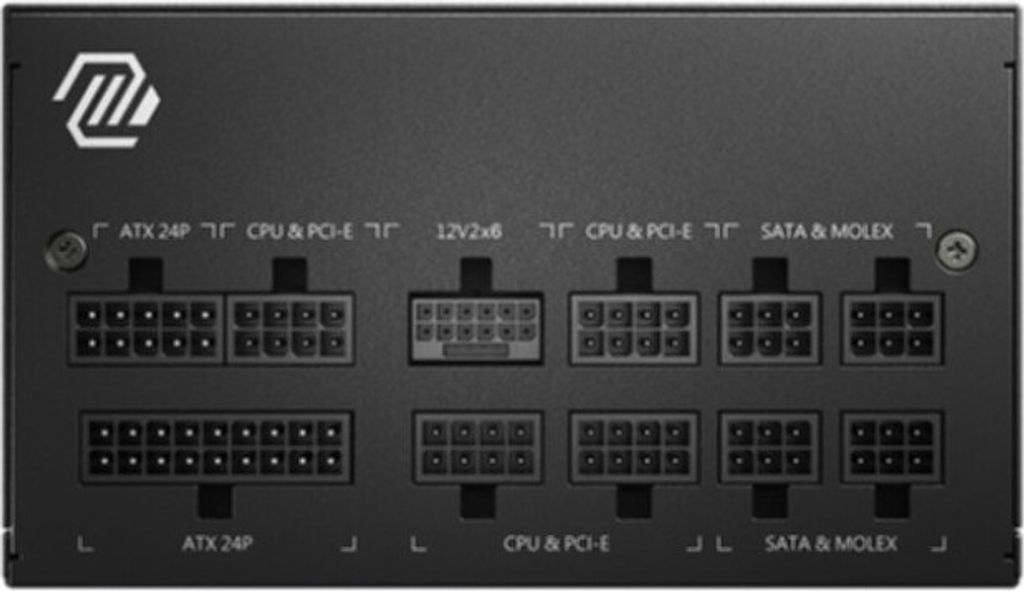

Output power connector details
1 x Power Supply: ATX, 24-pin
2 x Power 8-pin EPS12V with removable 4-pin ATX12V section
1 x 12+4 pin PCI Express 5.0 Connector 600 W
4 x 8-pin PCI Express Power with removable 2-pin Section
8 x 15-Pin SATA Power Connectors
5 x Internal Power Supply, 4-pin
Power Capacity
850 Watts
Output current
+3.3V - 20 A
+5V - 20 A
-12V - 0.3 A
+12V - 70.5 A
+5VSB - 2.5 A
Efficiency
90%
Modular Cable Management
Yes
80-PLUS-
80 PLUS Gold
Miscellaneous
Cables included
ATX Power Cable 60 cm
16-pin 12VHPWR Power Cable 60 cm
2 x Modular 2 x 8-Pin PCI-Express Power Cables with removable 2-Pin Section 60 cm
2 x Modular Power Cable 8-Pin +12 V with removable 4-Pin Section 70 cm
2 x 15-Pin SATA Power Cable
4-Pin Internal Power Cable
Cooling system
120 mm Fan
Features
Overheating protection, overcurrent protection, overvoltage protection, over power protection, undervoltage protection, short circuit protection, single 12V rail, Direct Current-Direct Current Technology, fan with dynamic fluid bearing, fully modular, LLC Full Bridge Topology
Dimensions and Weight
Width
15 cm
Depth
14 cm
Height
8.6 cm


Design



  • Lighting: No
  • On/Off switch: Yes
  • Fan diameter: 12 cm
  • Number of fans: 1 fan
  • Cooling type: Active
  • Product color: Black

Performance



  • AC input frequency: 47 63 Hz
  • Combined power (+12 V): 846 W
  • Combined power (+5 Vsb): 12.5 W
  • Max output current (+5 Vsb): 2.5 A
  • Power protection functions: overheating, overcurrent, short circuit, over power, overvoltage
  • AC input voltage: 100 240 V
  • Max output current (+5 V): 20 A
  • Efficiency: 90 %
  • Max input current (@220 V): 4 A
  • Max. output current (-12 V): 0.3 A
  • Combined power (+5 V): 110 W
  • Max input current (@110 V): 8 A
  • Max. output current (+3.3 V): 20 A
  • Type of power factor correction (PFC): Active
  • Combined power (-12 V): 3.6 W
  • Total power: 850 W
  • Combined power (+3.3 V): 110 W
  • Max. output current (+12 V): 70.5 A

Weight and Dimensions



  • Width:150 mm
  • Depth:140 mm
  • Height:86 mm

Performance



  • 80 PLUS: 80 PLUS Gold
  • Purpose: PC
  • Power supply unit (PSU) form factor: ATX

Packaging Data



  • Packaging type: Box

Connections and Connections Interfaces



  • ATX power connector (24-pin): No
  • Peripheral power connectors (Molex) (4-pin): 4
  • PCI-Express power connectors (6+2-pin): 4
  • Length of motherboard power cable: 60 cm
  • Number of SATA power connectors: 8
  • Wiring type: Modular
  • EPS power connector (4+4-pin): Yes
  • CPU power connector (4+4-pin): Yes
  • ATX power connector (20+4-pin): No
  • Motherboard power connector: 20+4-pin ATX
  • EPS power connector (8-pin): No

Logistic Data



  • Harmonized System (HS) Code: 84733020



Total power:
850 W
AC input voltage:
100 - 240 V
AC input frequency:
47 - 63 Hz
Max input current (at 110V):
8 A
Max input current (at 220V):
4 A
Power factor correction filter (PFC):
Active
Combined power (+3.3V):
110 W
Combined power (+12V):
846 W
Combined power (+5V):
110 W
Combined power (-12V):
3.6 W
Combined power (+5Vsb):
12.5 W
Max. output current (+3.3V):
20 A
Max. output current (+12V):
70.5 A
Max output current (+5V):
20 A
Max. output current (-12V):
0.3 A
Max. output current (+5Vsb):
2.5 A
Efficiency:
90%
Energy protection features:
overcurrent, overload, overvoltage, overheating, short circuit
Motherboard connector:
20+4 pin ATX
Number of Molex connections 4pin:
4
Power cable length motherboard:
60 cm
Number of SATA power connectors:
8
EPS power connector (4+4-pin):
Yes
Number of PCI Express power connectors 6+2pin:
4
CPU connector (4+4 pin):
Yes
Cable type:
Fully-Modular
Purpose:
PC
Power supply unit (PSU) form factor:
ATX
80 Plus:
80 PLUS Gold
Product Color:
Black
Cooling:
Active
Fan diameter:
12 cm
Number of fans:
1 fan
On/Off Switch:
Yes
Width:
150 mm
Depth:
140 mm
Height:
86 mm
Packaging type:
Box
Tariff Number (HS):
84733020




  • Type: Modular
  • Recommended use: Desktop PC
  • Width: 15 cm
  • Length: 14 cm
  • Connections:
    • Molex 4-pin
    • PCIE 6+2 PIN
    • CPU 4+4 PIN
    • ATX 20/4 Pin
    • FDD 4 Pin
    • 20+4 pin ATX
    • 4+4 pin
    • SATA
    • SATA x 5
    • 6+2 PIN x 2
    • 4-pin x 2
  • Plugable product: Yes
  • Features:
    • Overload protection
    • Overvoltage protection
    • Overheating protection
    • On/Off switch
    • Short circuit protection
  • Voltage: 100-240V
  • Color: Black
  • Form factor: ATX
  • Fan: 12 cm
  • Approximate dimensions: 15 x 8.6 x 14 cm
  • Frequency: 47-63 Hz
  • Power: 850 W
  • Plug type: EU plug


Product Specifications:

  • Power: 850 W
  • Cable type: Fully modular
  • : 80 PLUS Gold
  • Form factor: ATX

Manufacturer No.:306-7ZP8A11-CE0



Power

  • Total Power: 850 W
  • AC Input Voltage: 100 - 240 V
  • AC Input Frequency: 47 - 63 Hz
  • Max Input Current (@110 V): 8 A
  • Max Input Current (@220 V): 4 A
  • Type of Power Factor Corrector (CFC): Active
  • Combined Power (+3.3 V): 110 W
  • Combined Power (+12 V): 846 W
  • Combined Power (+5 V): 110 W
  • Combined Power (-12V): 3.6 W
  • Combined Power (+5Vsb): 12.5 W.
  • Max. Output Current (+3.3V): 20 A
  • Max. Output Current (+12V): 70.5 A
  • Max. Output Current (+5V): 20 A
  • Max. Output Current (-12V): 0.3 A
  • Max. Output Current (+5Vsb): 2.5 A
  • Efficiency: 90%.
  • Electrical protection devices: overcurrent, power fault, overvoltage, overheating, short circuit.

Connectivity

  • Mainboard Connector: 20+4 pin ATX.
  • Length of mainboard power cable: 60 cm.
  • Number of SATA power cables: 5
  • Peripheral device Molex connector (4-pin): 2
  • EPS Power Connector (8-pin): No.
  • EPS Power Connector (4+4-pin): Yes
  • PCI Express Power Connector (6 +2-pin): 2
  • CPU Power Connector (4+4-pin): Yes
  • ATX Connector (24-pin): No
  • ATX Power Connector (20+4 pin): No
  • Wiring Type: Modular

Presentation / Realization

  • 80 PLUS: 80 PLUS Gold.
  • Purpose: PC
  • Form factor of power supply: ATX

Design

  • Product color: Black
  • Type of cooling: Active
  • Fan diameter: 12 cm
  • Number of fans: 1 fan(s)
  • Integrated on/off switch: Yes

Weight and Dimensions

  • Width: 150 mm
  • Depth: 140 mm
  • Height: 86 mm

Packaging Information

  • Type of packaging: Box.

Logistic Data

  • Harmonized System code: 84733020


Energy | Total Power: 850 W | AC input voltage: 100 - 240 V | AC input frequency: 47 - 63 Hz | Max input current (at 110V): 8 A | Max input current (at 220V): 4 A | Power factor correction filter (PFC): Active | Combined power (+3.3V): 110 W | Combined power (+12V): 846 W | Combined power (+5V): 110 W | Combined power (-12V): 3.6 W | Combined power (+5Vsb): 12.5 W | Max. output current (+3.3V): 20 A | Max. output current (+12V): 70.5 A | Max output current (+5V): 20 A | Max. output current (-12V): 0.3 A | Max. output current (+5Vsb): 2.5 A | Efficiency: 90% | Energy protection features: overcurrent, overload, overvoltage, overheating, short circuit | Connections and Interfaces | Motherboard Connector: 20+4 pin ATX | Power cable length motherboard: 60 cm | Number of SATA power connectors: 8 | Number of Molex connections 4pin: 4 | Feature: EPS power connector (4+4-pin) | Number of PCI Express power connectors 6+2pin: 4 | Feature: CPU connector (4+4 pin) | Cable type: Fully modular | Performance | 80 Plus: 80 PLUS Gold | Purpose: PC | Power supply unit (PSU) form factor: ATX | Design | Product color: Black | Cooling: Active | Fan diameter: 12 cm | Number of fans: 1 fan | Feature: On/Off Switch | Weight and Dimensions | Width: 150 mm | Depth: 140 mm | Height: 86 mm | Packaging Data | Packaging type: Box | Logistic Data | Tariff Number (HS): 84733020 |

MSI MAG A850GL PCIE5. Total power: 850 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard connector: 20+4 pin ATX, power cable length motherboard: 60 cm, cable type: Fully modular. Purpose: PC, power supply unit (PSU) form factor: ATX, 80 Plus: 80 PLUS Gold. Product color: Black, cooling: Active, fan diameter: 12 cm. Width: 150 mm, depth: 140 mm, height: 86 mm

MSI MAG A850GL PCIE5 - Power Supply (internal) - ATX12V 3.0 - EPS12V - 80 PLUS Gold - AC 100-240 V - 850 Watts - Active PFC (306-7ZP8A11-CE0)

MSI MAG A850GL PCIE5. Total le<|vq_254|>MSI MAG A850GL, 306-7ZP8A11-CE0, 1x 16-Pin PCIe 5.0 12VHPWR total max.: 600W

MSI MAG A850GL PCIE5 850W 80+ Gold Power Supply. Maximum wattage: 850W, certification: 80+ Gold, standard: ATX, modular, manufacturer code: 306-7ZP8A11-CE0...

Shipping times depend on where the delivery address is set to. Our products are estimated to be delivered in 3-7 days once the item has been shipped.

We offer free shipping within the European Union!!

If you are not happy with any of our products, message our support team and we will gladly help you solve your situation! Please check our Return Policy for details for any Returns & Refunds requests.
