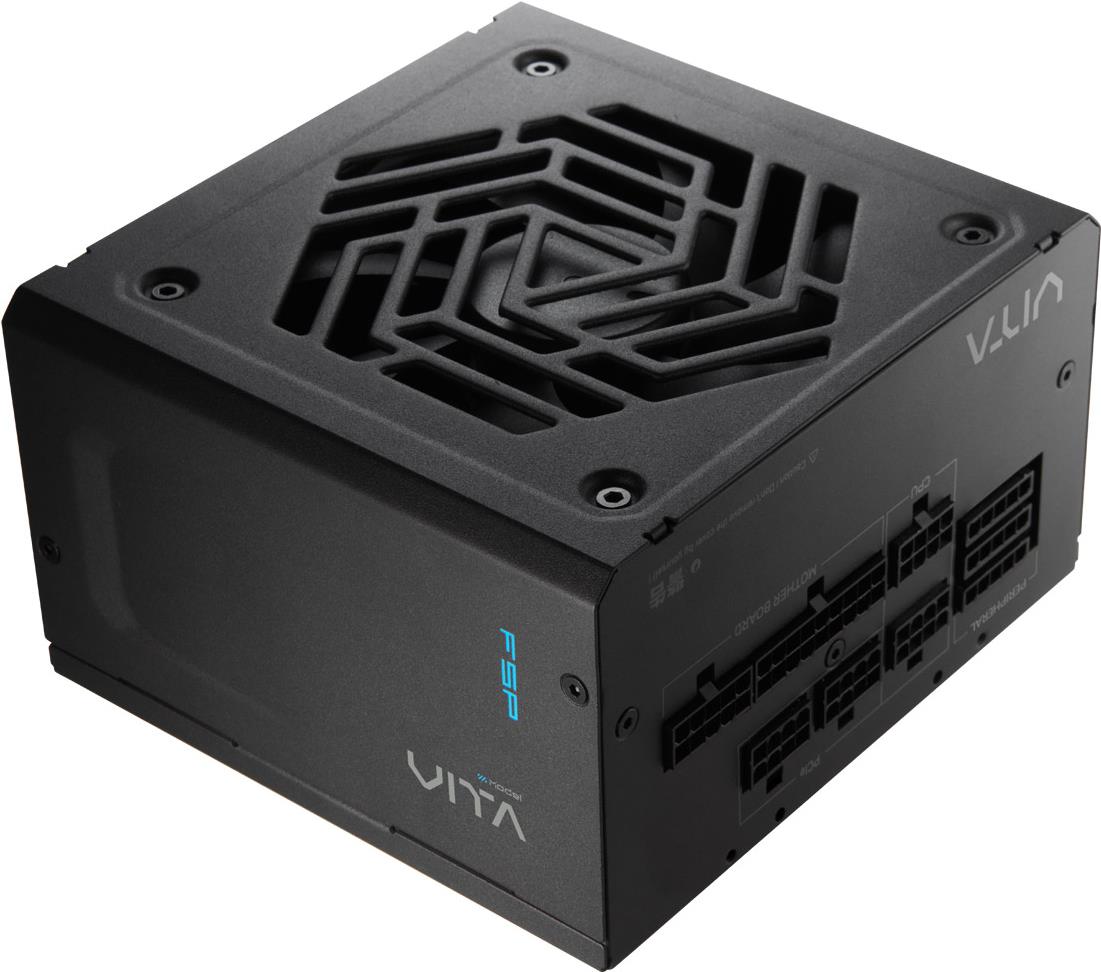

FSP power supply VITA 1000 80 1000W F-modular ATX30GEN5 Retail - PC server power supply (PPA10A4002)

FSP power supply VITA 1000 80 1000W F-modular ATX30GEN5 Retail - PC server power supply (PPA10A4002)

€234,12

Product Description

Complies with the Intel Power Design Guide ATX 3.1. These power supplies have been developed for the demanding power requirements of tomorrow and provide maximum support for overall power according to ATX 3.1 and PCIe Gen 5.1 specifications, ensuring peak performance even with future hardware upgrades. We follow the ATX 3.1 recommendation level. Considering the changes in the new specification from ATX 3.0 to ATX 3.1, FSP follows the criteria recommended by Intel to stay up to date and focus on the benefits for the user. The importance of the hold-up time indicates how long a power supply can maintain a constant output voltage on a regular output level after it has been turned off or when a power failure has occurred. This time period prevents disturbances in the computer system or sudden short circuits, overloads, power outages, or voltage drops in the power grid. For the ATX 3.1 hold-up time, there are both a required and a recommended value. FSP ATX 3.1 chooses the recommended value for uncompromising power quality. High efficiency through Gold certification, certified by leading global organizations with 80 PLUS Gold certifications, achieving platinum efficiency at typical load for lower loss power, less heat, and quieter operation. LLC resonant converter topology with synchronous rectification reduces switching losses, increases efficiency, and regulates output voltage under load conditions. +5 V & 3.3 V DC-to-DC circuit design enhances efficiency and stabilizes output voltage to ensure system stability. 105 C Japanese bulk capacitors equip your PC with the best class capacitors to ensure maximum reliability, performance, and lasting power. 120 mm large hydraulic fan (HYB). The quality bearing minimizes fan noise while providing maximum cooling performance. Power-packed single +12 V rail. This high-amperage +12V rail delivers high load capabilities, making it ideal for intensive workloads of high-performance CPUs and graphics cards. High performance for you. Individual 4+4 pin CPU cables provide direct output power to the CPU, ensuring stable operation even under the most demanding workloads. Fully modular cable design for easy power supply installation and use of only the necessary cables, improving airflow and reducing clutter in the system. Compact power supply: 140 x 150 x 86 mm. With a length of 140 mm, which is relatively shorter than the industry standard, it is ideal for compact PCs or space-constrained environments without compromising performance. Comprehensive protection. Our comprehensive circuitry protects your valuable components from damage.

Main Features

Power
Total Power 1000 W
AC Input Voltage 100 - 240 V
AC Input Frequency 50/60 Hz
Input Current 12-6 A
Power Factor Correction Filter (PFC) Active
Combined Current (+3.3V) 100 W
Combined Current (+12V) 1000 W
Combined Current (+5V) 100 W
Combined Current (-12V) 3.6 W
Combined Current (+5Vsb) 15 W
Max Output Current (+3.3V) 20 A
Max Output Current (+12V) 83.33 A
Max Output Current (+5V) 20 A
Max Output Current (-12V) 0.3 A
Max Output Current (+5Vsb) 3 A
Efficiency 90%
Energy Protection Features Overcurrent, Overload, Overvoltage, Overheat, Short circuit, Undervoltage

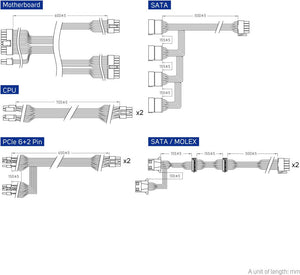

Connections and Interfaces
Motherboard connector 20+4 pin ATX
Number of Molex connections 4 pin 4
Power cable length motherboard 60 cm
Number of SATA power connectors 8
SATA power cable length 500 mm
Number of PCI Express power connectors 6+2 pin 4
CPU connector (4+4 pin) Yes
CPU power cable length 70 cm
Cable type Fully modular
Specifications
Purpose PC
Power Supply Unit (PSU) Form Factor ATX
80 Plus Certification 80 PLUS Gold
ATX Version 3.1
EPS Version 2.92
Bearing Type HYB
Design
Product Color Black
Cooling Active
Fan Diameter
