D-LINK DIS 100E-8W - Switch - not managed - 8 10100 - on DIN rail assembly. Wall assembly - DC current
Final price and shipping costs includes local VAT as per delivery country in the European Union for end consumers. (B2C)
VAT free invoice available for business customer with a valid EU VAT number on request before purchase. (B2B)
Return for free within 14 days of receipt in it's original condition (unopened and not used) for end consumers. Duties & taxes are non-refundable. (for Non-EU deliveries)
Disclaimer: Despite our best efforts we cannot guarantee that the published specifications and images do not contain errors or mistakes that cannot however constitute the basis for claims.
All trademarks, logos and brand names are the property of their respective owners. All company, product and service names used in this website are for identification purposes only. Use of these names,trademarks and brands does not imply endorsement.
D-LINK DIS 100E-8W - Switch - not managed - 8 10100 - on DIN rail assembly. Wall assembly - DC current
Description
The Industrial Fast Ethernet Unmanaged Switches of the DIS-100E series have been specifically designed to withstand a wide temperature range, vibrations, and shocks. These robust yet easy-to-install switches offer superior protection against environmental influences compared to commercial-grade switches.
Thanks to their durable construction combined with high availability network functions, these switches form an essential component of any network infrastructure for the growing connectivity needs of smart cities, city-wide surveillance systems, and wireless connections. DIS-100E Unmanaged Switches feature 5 or 8 Fast Ethernet ports and support standard applications in an industry-standard true plug-and-play solution without complicated setup.
> Highlights
- Robust, resilient construction
- High reliability
- Suitable for harsh environmental conditions

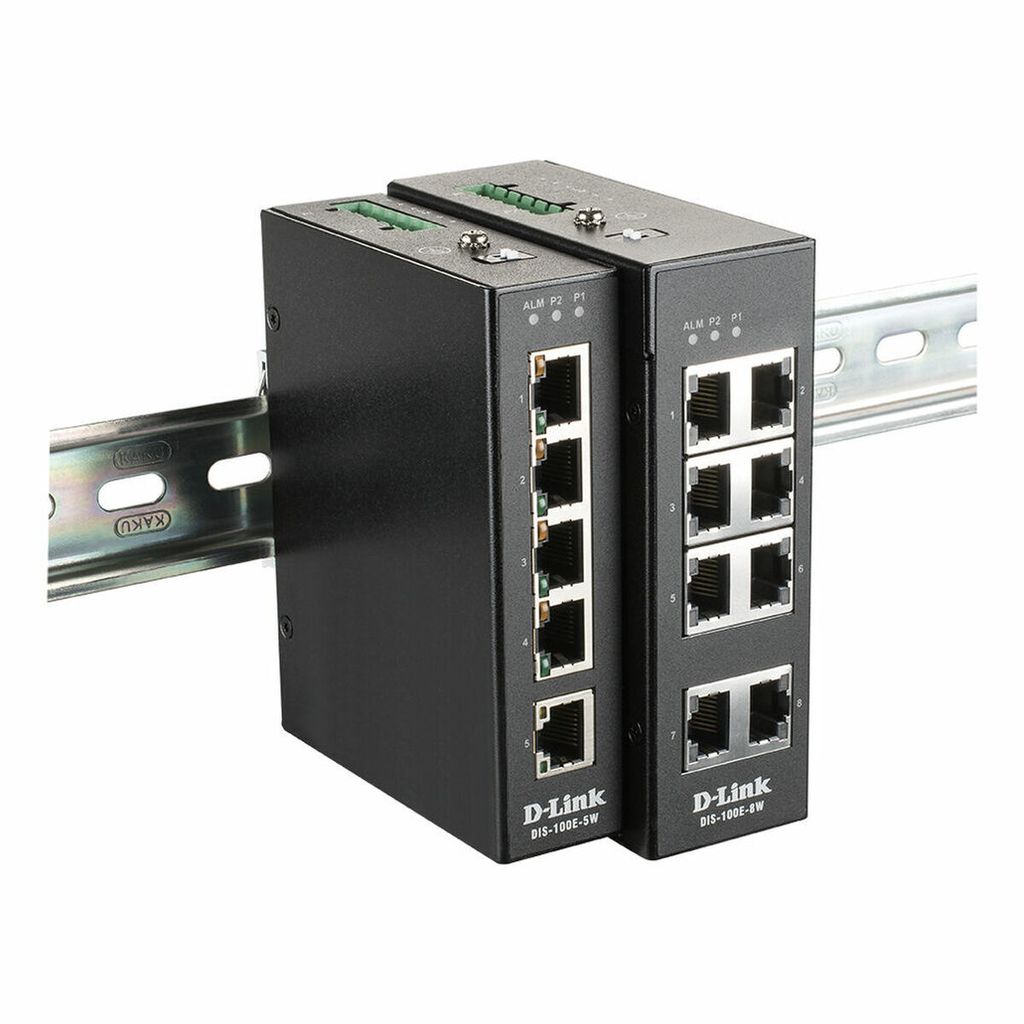

- Options for DIN rail and wall mounting
- Excellent for use in edge applications
> Product type
- Switch
> Connections
- Number of copper ports: 8
> Features
- Wall mountable
> Basic properties
- Color: Black
- Height: 117.8 mm
- Length/Depth: 96.9 mm
- Width: 39 mm
- Weight: 405 g
> Texts
- Technical description: DIN rail mounting, wall mounting
- supports both crossed and straight network cables
- automatic speed adjustment for input voltage range
- 1258 V DC, power consumption
- max. 1.64 W, protection class
- IP30
> Scope of delivery
- D-Link DIS-100E-8W 8-Port Fast Ethernet Industrial Switch
> Highlights:
- Robust and resilient construction
- High reliability
- Suitable for difficult environmental conditions
- Options for DIN rail and wall mounting
- Excellent for use in edge applications
> Switch
- 8 Ports Cu 10/100
- Fanless
- max. power consumption 1.56 W
- Wall mountable possible
> System connections
- Number of Ethernet ports 10/100 Mbit/s: 8
> Basic properties
- Color: Black
- Height: 117.8 mm
- Width: 39 mm
- Depth: 96.9 mm
- Weight: 405 g
- Product type: Switch
> Technical description
- DIN rail mounting, wall mounting
- supports both crossed and straight network cables
- automatic speed adjustment for input voltage range
- 1258 V DC
> Power consumption
- max. 1.64 W
> Protection class
- IP30
> Scope of delivery
- D-Link DIS-100E-8W 8-Port Fast Ethernet Industrial Switch
> Product links
- Access D-Link Network Configuration Service
- Switch type:
- Unmanaged
- Switch level:
- L2
- Number of basic switching RJ-45 Ethernet ports:
- 8
- Basic switching RJ-45 Ethernet ports type:
- Fast Ethernet (10/100)
- Relay output:
- 1
- Network standard:
- IEEE 802.3x
- Copper Ethernet cabling technology:
- 10BASE-T, 100BASE-TX, 100BASE-T
- Full duplex:
- Yes
- Support for flow control:
- Yes
- Broadcast storm control:
- Yes
- Auto MDI/MDI-X:
- Yes
- Auto-negotiation function:
- Yes
- MAC address table:
- 1000 entries
- Store-and-forward:
- Yes
- Rack mountable:
- Yes
- Stackable:
- Yes
- Product color:
- Black
- International protection class (IP code):
- IP30
- Wall mountable:
- Yes
- DIN rail mountable:
- Yes
- :
- UL 609501 FCC
- Plug & Play:
- Yes
- Mean time between failures (MTBF):
- 219000 h
- Commodity tariff number (HS):
- 85176990
- 20 cm
- 30.5 cm
- 43 cm
- 6.64 kg
- 10 piece(s)
- Pallet gross weight (air):
- 257.4 kg
- Number of cartons per pallet (air):
- 36 piece(s)
- Number per pallet (air):
- 360 piece(s)
- Pallet length (gross):
- 120 cm
- Pallet width (gross):
- 110 cm
- Pallet height (air):
- 135 cm
- Pallet gross weight (sea):
- 377.1 kg
- Number of cartons per pallet (sea):
- 54 piece(s)
- Number per pallet (sea):
- 540 piece(s)
- Pallet height (sea):
- 195 cm
- 6.65 kg
- DC input voltage:
- 12 - 58 V
- Power consumption (standard operation):
- 1.41 W
- Power consumption (max.):
- 1.64 W
- Operating temperature:
- -40 - 75 °C
- Storage temperature range:
- -40 - 85 °C
- Relative humidity during operation:
- 5 - 95%
- Width:
- 39 mm
- Depth:
- 96.9 mm
- Height:
- 117.8 mm
- Weight:
- 405 g
- Packaging width:
- 140 mm
- Packaging depth:
- 178 mm
- Packaging height:
- 83 mm
- Package weight:
- 570 g
- Color:
- Black
- Black
- Width: 39 mm
- Connection: Plug and play
- Connections:
- RJ-45 x 8
- RJ45 x 8
- Connectivity: Ethernet LAN
- Power consumption: 1.64 W
- Approximate dimensions: 11.78 x 3.9 x 9.69 cm
- Type:
- Rack
- Stackable
- Features:
- Wall mountable
- Plug & Play
- IP classification: IP30
- Approximate temperature: -40º / 85º
General information
- Manufacturer:
- D-Link Systems, Inc
- Manufacturer article number:
- DIS-100E-8W
- Manufacturer website:
- Brand:
- D-Link
- Product line:
- DIS-100E
- Model:
- DIS-100E-8W
- Product designation:
- Industrial Fast Ethernet Unmanaged Switch
- Product type:
- Ethernet Switch
Interfaces / Connections
- Total number of network ports:
- 8
- Uplink connection:
- No
- Modular:
- No
- Stack connection:
- No
Media / Power
- Supported media types:
- Twisted pair cable
- Ethernet technology:
- Fast Ethernet
- Network technology:
- 10/100Base-TX
Network/Communication
- Supported network layer:
- 2
Management / Protocols
- Managed:
- No
Power Supply
- Power supply:
- Power supply
- Redundant power supply supported:
- No
Dimensions / Weight / Color
- Form factor:
- DIN rail mountable
- Wall mountable
- Height:
- 39 mm
- Width:
- 117.8 mm
- Depth:
- 96.9 mm
- Weight:
- 405 g
Miscellaneous
- Environmentally friendly:
- Yes
DLink Germany Fast Ethernet Ind.Switch DIS-100E-8W Manufacturer: DLink Germany Designation: Fast Ethernet Ind.Switch 8-Port Layer2 unma. Type: DIS-100E-8W Ethernet: yes Number of 10/100 Mbps RJ45 ports: 8 Mounting type: DIN rail Layer 2: yes Layer 3: no Managed: no Power over Ethernet (PoE): other protection class (IP): IP30 Height: 96.9 mm Width: 117.8 mm Depth: 39 mm DLink Germany Fast Ethernet Ind.Switch DIS-100E-8W: further details The Industrial Fast Ethernet Unmanaged Switches of the DIS-100E series have been specifically designed to withstand a wide temperature range, vibrations, and shocks. These robust yet easy-to-install switches offer superior protection against environmental influences compared to commercial-grade switches. Thanks to their durable construction combined with high availability network functions, these switches form an essential component of any network infrastructure for the growing connectivity needs of smart cities, city-wide surveillance systems, and wireless connections. DIS-100E Unmanaged Switches feature 5 or 8 Fast Ethernet ports and support standard applications in an industry-standard true plug-and-play solution without complicated setup. Delivered is: DLink Germany Fast Ethernet Ind.Switch 8-Port Layer 2 unma. DIS-100E-8W, packaging unit: 1 piece, EAN: 0790069441288
Manufacturer: D-LINK
Product group: Network components
Product type: Network switches
Color: black
Network standard: Fast Ethernet
LAN (Mbit/s): 10/100
Total number of ports: 8
Fast Ethernet ports RJ-45: 8
Power connection: Loose cables / screw terminals
Height: 96.9 mm
Width: 117.8 mm
Depth: 39 mm
Weight: 445 g
Packaging height: 90 mm
Packaging width: 150 mm
Packaging depth: 190 mm
Package weight: 0.6 kg
Gross weight: 0.6
Current catalog edition: 24.1
Current catalog page: 1.12
Unmanaged Plug-and-Play Connect and go. The DIS-100E-8W reliably forwards Ethernet frames. Fast Ethernet connection Equipped with 8x 10/100Base-T(X) ports suitable for your network layout. Withstands extreme temperatures Functions in numerous industrial and other demanding environments with temperatures from -40 °C to +75 °C. Suitable for cold starts from -40 °C. Robust construction The durable housing has been designed to ensure your network stays reliably protected and resilient. Quick installation With its DIN rail clip, the switch can be installed instantly. Wall mounting is also possible. The robust housing has been optimized for heat dissipation
Color: Black Connections: RJ45 x 8 Connectivity: Ethernet LAN Power consumption: 1.64 W Pluggable product: Yes Approximate dimensions: 11.78 x 3.9 x 9.69 cm Plug type: EU plug
Under the motto 'Connect to More', we offer you innovative networking solutions. Founded in 1986, D-Link has evolved from a small company to a global leader in professional networking solutions.
D-Link DIS 100E-8W - Switch - unmanaged - 8 x 10/100 - DIN rail mountable, wall-mountable - DC
